MEWP anti-entrapment protection should do more than sound an alarm when danger is already close.
For projects adopting the updated DEVB TC(W) No. 3/2023 contract provisions, the Smart Monitoring System for Mobile Elevating Work Platform serves as a secondary guarding device to help protect operators from entrapment risk.
It may be a built-in MEWP feature or a compatible third-party retrofit, depending on the machine model and project requirements.
A complete system should be able to:
• Detect obstacles around and above the MEWP

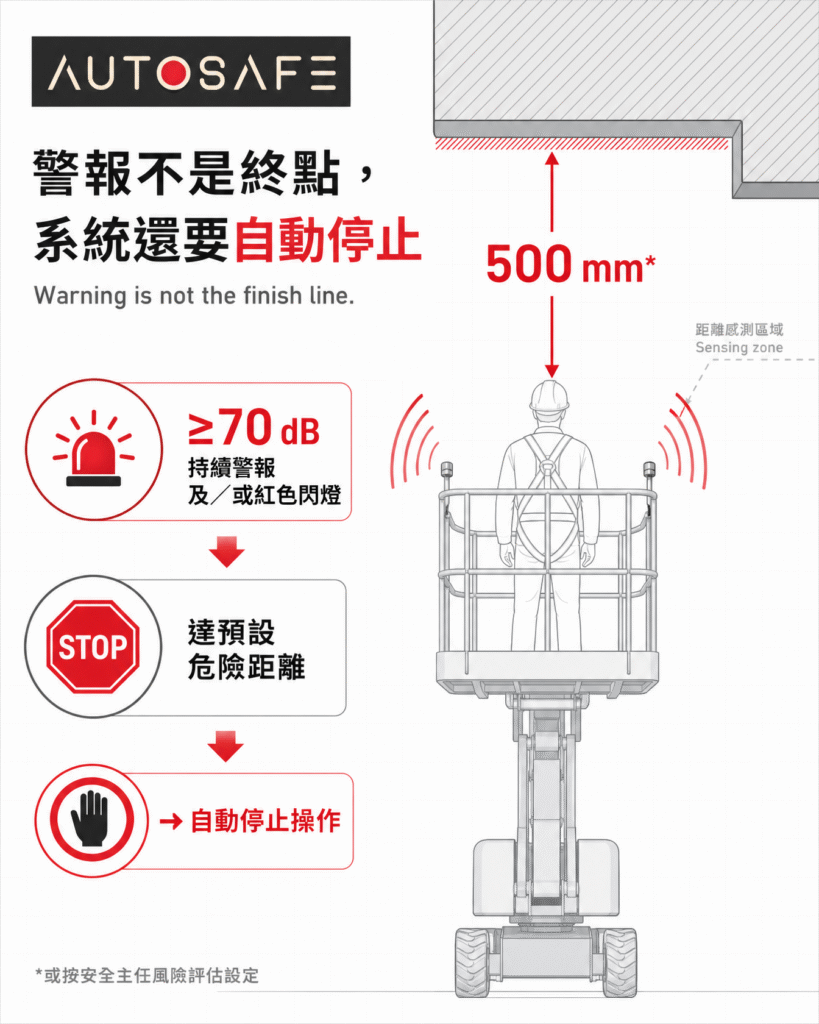

• Trigger a continuous warning siren of at least 70 dB and/or a flashing red light when personnel come within 500 mm—or another risk-assessed distance—of an obstacle
• Automatically stop MEWP operation at the predetermined danger distance

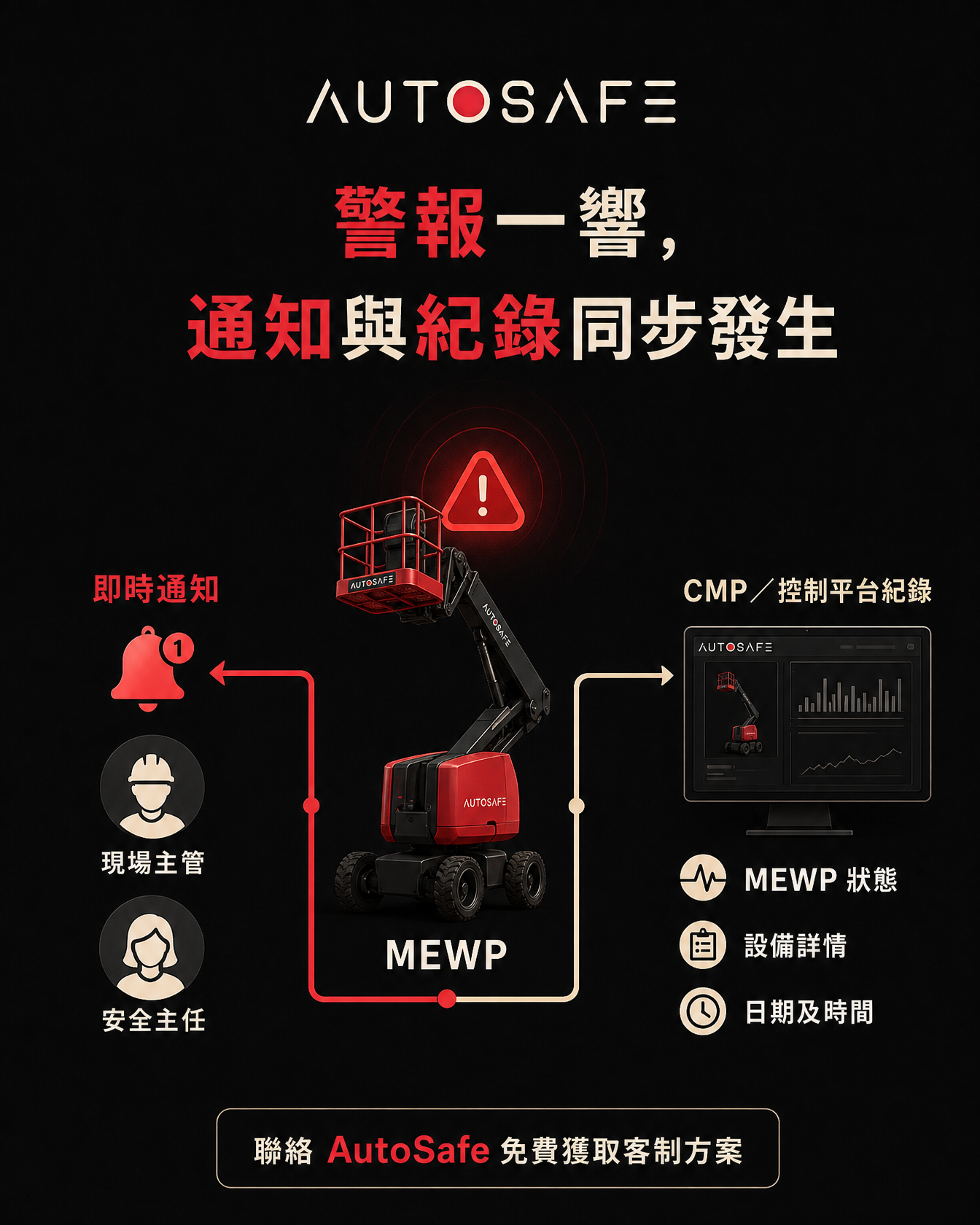

• Notify site supervisors and the Safety Officer immediately when a warning is triggered
• Simultaneously record the relevant MEWP status, incident details, date and time on the CMP or control platform for follow-up
Effective deployment also requires equipment records, pre-operation checks, operator and rescue-team briefing, and a site-specific rescue arrangement.
AutoSafe can support 4S technical assessment, solution planning and integration with existing site systems or CMPs.
Contact AutoSafe to get your free tailored solution.
MEWP 的防夾保護，不應只是在危險已逼近時響一聲。
在適用更新後 DEVB TC(W) No. 3/2023 合約條文的工程中，Smart Monitoring System for Mobile Elevating Work Platform 的定位，是作為二次防護裝置，協助降低操作員被夾困的風險。
它可以是 MEWP 原廠內置功能，亦可以是經型號相容性評估後加裝的第三方方案。
重點不只在於裝上感應器，而是讓系統能夠：
• 偵測 MEWP 周邊及上方障礙物
• 當人員與障礙物距離低於 500 mm，或安全主任按風險評估設定的距離時，發出最少 70 dB 持續警報及／或紅色閃燈
• 到達預設危險距離時，自動停止 MEWP 操作
• 警報觸發時，同步通知現場主管及安全主任
• 同步把相關 MEWP 狀態、事件詳情、日期及時間，記錄至中央管理平台（CMP）或控制平台，以便跟進
完整的 MEWP 智能監察方案，亦應包括設備登記、操作前檢查、操作及救援人員簡介，以及按現場風險制定的救援安排。
AutoSafe 可協助進行 4S 技術評估、方案規劃，以及與現有地盤系統或 CMP 的整合。
聯絡 AutoSafe，免費取得客製化方案。
